Low Pressure Permanent Mold Casting Kentucky
Table of Contents
Low Pressure Permanent Mold Casting in Kentucky
Building on the previous section’s overview of permanent mold casting, low pressure permanent mold casting in Kentucky is a process that forces molten metal into a reusable steel mold under precisely controlled low air pressure. In low pressure die casting vs gravity casting, the controlled fill minimizes turbulence and porosity, producing denser, higher-integrity parts–an outcome the American Foundry Society describes. These permanent mold casting benefits deliver superior surface finish, tight dimensional accuracy and improved mechanical properties, making the process ideal for precision aluminum automotive casting. From our Colorado facility we serve Kentucky manufacturers with Made-in-USA production and short lead times for medium-to-high-volume runs of aluminum and zinc alloys. Up next, we’ll share a real-world client outcome that shows how these advantages work from prototype to production.
1. Superior Surface Finish Quality
Building on the fundamentals of the low pressure permanent mold casting process, we achieve outstanding surface quality through our low pressure die casting services. The controlled, low-pressure fill mechanism pushes molten metal upward into the die with minimal turbulence, virtually eliminating gas entrapment and surface porosity.

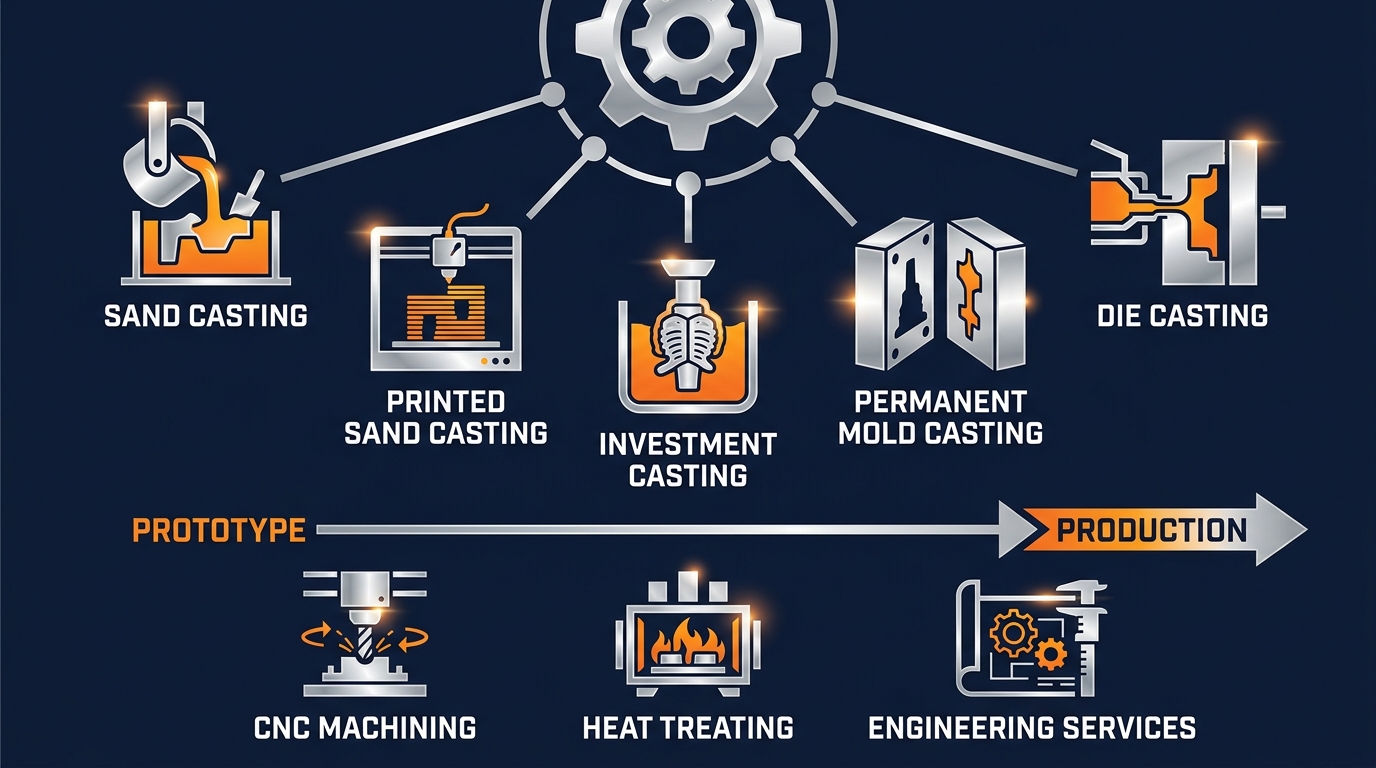

Process flexibility overview from prototype to production at Protocast.

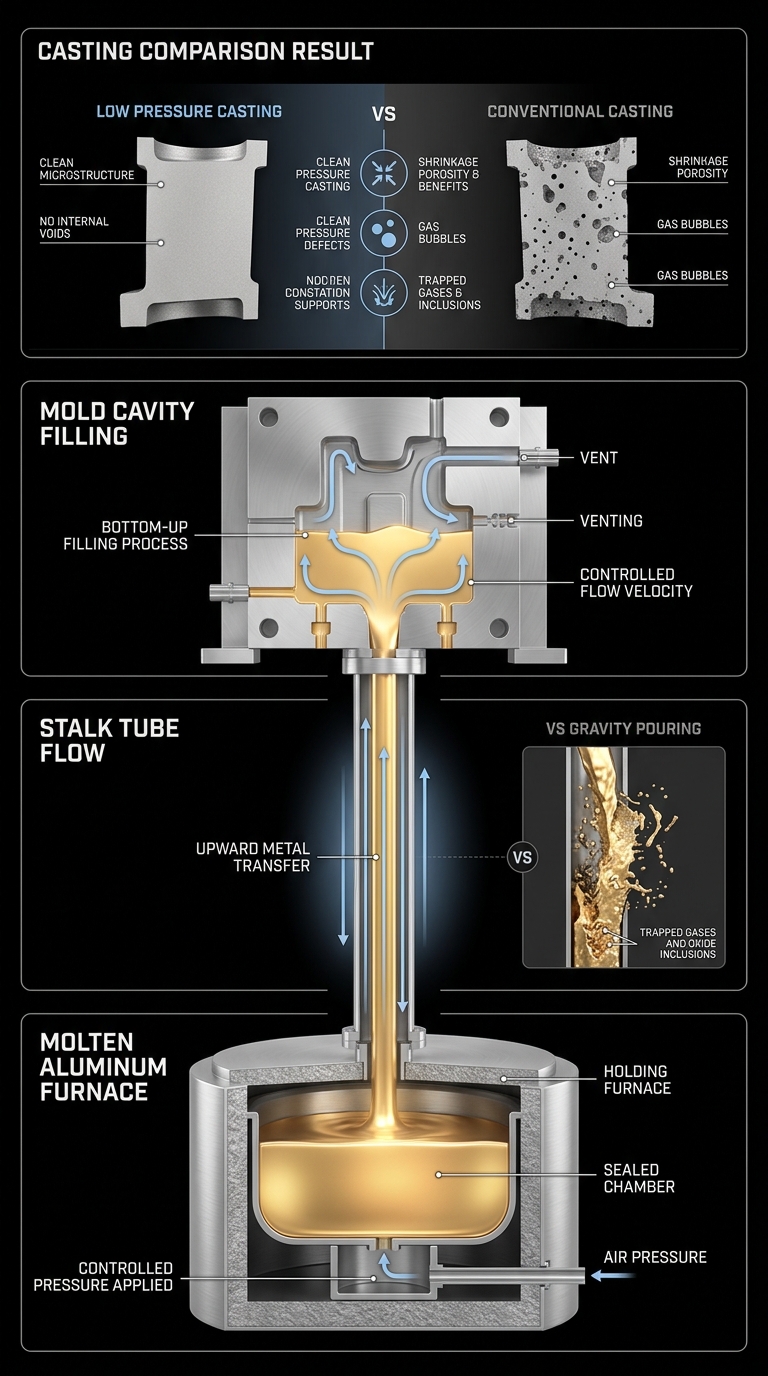

Low pressure die casting fill mechanism with laminar flow control vs gravity casting turbulence.
This smooth, laminar flow produces a uniform, defect-free surface finish that far surpasses gravity casting results. Unlike gravity-poured methods, our low pressure approach prevents oxide film formation and inconsistent chill zones, yielding a consistent, high-integrity skin.
- Reduced turbulence for cleaner as-cast surfaces
- Minimized oxide inclusions for superior appearance
- Consistent finish comparable to investment casting
- Often eliminates secondary machining or polishing
According to the American Foundry Society, these surface finishes meet or exceed stringent casting class standards. For precision aluminum automotive casting applications, this translates to components that require little to no post-processing, accelerating delivery and reducing overall production complexity.
With every project, we deliver consistent, high-quality surfaces that meet both cosmetic and functional demands–From Prototype to Production, Made in the USA.
2. Enhanced Mechanical Properties
Building on the permanent mold casting fundamentals introduced earlier, the process delivers measurably superior mechanical properties over sand casting. In permanent mold casting, controlled solidification against the metal mold produces finer grain refinement, increasing tensile strength and fatigue resistance. Rapid heat extraction minimizes shrinkage porosity, yielding denser, defect-free castings. According to the American Foundry Society, the permanent mold casting process typically boosts ultimate tensile strength by 20-30% over equivalent sand-cast aluminum alloys.
The property improvements translate into clear performance advantages:
- Up to 30% higher ultimate tensile strength in common aluminum alloys.
- Improved fatigue resistance from denser, less porous microstructures.
- Enhanced ductility and impact resistance for structural and safety-critical components.
Our Colorado-based facility’s permanent mold process — supported by ISO 9001:2015 and ITAR certifications — delivers repeatable mechanical properties across production runs. Consistent process parameters ensure every batch meets the same stringent specifications, a critical requirement for precision components.
These enhancements make permanent mold castings well suited for demanding applications. In the next section, “Typical Applications and Alloy Selection,” we examine how these properties drive component performance in real-world industries.
3. Cost-Effective for Medium-Volume Runs
After prototyping, runs of 50 to 2,000 units benefit from printed sand casting. This process uses a 3D-printed sand mold for each pour, eliminating traditional pattern tooling and storage costs. Without amortizing expensive dies, it balances flexibility and economy for mid-volume needs.
Our printed sand casting technology bridges prototype and full-scale production. By printing molds directly from CAD data, we eliminate pattern investment, making it a low-tooling-cost process. Permanent mold casting, by contrast, requires metal dies cost-effective only above 5,000 units. With multiple casting processes under one roof, we guide projects to the most economical path–often printed sand casting for medium runs.
The following table compares cost structures for a 500-unit run:
| Process | Tooling Cost | Lead Time | Unit Price |
|---|---|---|---|
| Printed Sand | Minimal | 1-2 Weeks | Moderate |
| Permanent Mold | High | 8-12 Weeks | Low |
Aluminum and zinc alloys poured in printed sand molds deliver high-quality castings at a fraction of the tooling cost of permanent mold or die casting. Printed sand casting is a natural step in our From Prototype to Production continuum. When volumes exceed 2,000 units, we pivot to permanent mold or die casting–covered next.
4. Dimensional Accuracy for Complex Parts
Building on the overview of casting methods, dimensional accuracy, the closeness of cast dimensions to design tolerances, is paramount for complex cast parts with thin walls or tight interfaces, ensuring proper assembly and minimizing secondary machining. Key influencing factors include:
- Pattern and mold quality
- Mold material rigidity
- Cooling rate
- Alloy shrinkage
Each variable’s impact varies by process. For high-tolerance, high-volume runs, our die casting services leverage steel molds for repeatable cooling. By housing multiple casting processes under one roof, Protocast Inc. pairs each part’s complexity with the optimal method, from sand casting for low-volume, complex shapes to die casting for high-precision, high-volume runs, ensuring that dimensional control is built into the process from the start. Our ISO 9001:2015 certified quality management system reinforces consistent dimensional outcomes, employing rigorous process controls and documentation From Prototype to Production. Accurate dimensions reduce machining stock and improve assembly fit, directly lowering overall production costs. The next section examines how we verify these tight tolerances through advanced metrology.
5. Reduced Porosity for Leak-Tight Castings
Reduced porosity is essential for leak-tight castings that hold pressure. Porosity stems from trapped gas or inadequate feeding, creating leak paths. Gas porosity comes from air/moisture in the mold or melt; shrinkage porosity results when the solidifying metal is not properly fed.
To eliminate these defects, we control fill rate, mold venting, temperature, and directional solidification. In low-pressure permanent mold casting, metal is fed upward from below, minimizing turbulence and gas entrapment–a key advantage for pressure-tight parts. While investment casting rapid prototyping offers intricate geometries, permanent mold casting is the better choice for leak-tight applications.
How We Minimize Porosity
At Protocast, our ISO 9001:2015 certified, Made in the USA permanent mold operation delivers leak-tight castings for hydraulic components and pressure vessels. We partner with customers to select the best process–sand, investment, or permanent mold–under one roof to meet porosity requirements, from prototype to production. Our void-free microstructures improve mechanical strength and surface finish, adding value beyond leak-tightness and cutting scrap.
6. Faster Cycle Times Than Gravity Methods
The low pressure permanent mold process delivers significantly shorter cycle times than gravity casting. We apply low-pressure air (2-15 psi) to a sealed furnace, pushing metal into the mold cavity far faster than gravity alone. This rapid fill eliminates turbulence and promotes directional solidification, where the casting solidifies from the mold walls inward under sustained pressure. Directional solidification accelerates cooling and shortens cycle time, boosting throughput for high-volume runs. In gravity casting, metal flows under its own weight, requiring larger gating and extending fill and solidification intervals. The low pressure die casting vs gravity casting advantage yields more parts per hour.
Faster cycles support tighter scheduling and just-in-time manufacturing. For precision aluminum automotive casting, where every second matters, the LPPM process delivers required speed without compromising consistency. This speed helps us provide engineering-focused casting services from prototype to production. In the next section, we explore how controlled solidification improves mechanical properties and overall quality.
7. Process Flexibility for Prototype to Production
Our foundry in Commerce City, Colorado already houses a wide array of casting technologies. The real advantage is process flexibility — starting with a prototype in one process and scaling to production with another, all under one roof. This eliminates multiple supplier qualifications and streamlines the path From Prototype to Production.
Low pressure die casting fill mechanism with laminar flow control vs gravity casting turbulence.
Process flexibility overview from prototype to production at Protocast.
We offer multiple casting processes under one roof — precision sand, printed sand, investment, permanent mold, and die casting — so we can match the optimal process to each phase of a project. We also utilize low-pressure permanent mold casting for parts that require superior fill and minimal porosity from early prototypes through full production. Complementary services — including CNC machining, heat treating, welding, and comprehensive inspection — are available at every stage.
Our engineers partner with our customers to optimize part design for manufacturability, ensuring that geometry decisions made for a prototype translate efficiently into production tooling. ISO 9001:2015 and ITAR certifications provide the quality and regulatory backbone, and our Made in the USA approach enables customers to reshore their casting projects with Protocast. This integrated process flexibility shortens development cycles and improves overall part quality.
8. Ideal for Precision Automotive Components
Low pressure permanent mold casting offers distinct advantages for precision automotive components that demand high dimensional accuracy, repeatability, and structural integrity. This process produces denser, more uniform castings than sand casting, significantly reducing internal porosity and improving mechanical properties–a critical requirement for safety-critical automotive parts.
At Protocast Inc., we pair low pressure permanent mold casting with in-house CNC machining, heat treating, and NDT to deliver end-to-end quality control for automotive castings. Our expertise in precision aluminum casting and zinc alloys commonly used in automotive applications ensures compliance with rigorous industry standards. Key advantages of this integrated approach include:
- Tighter tolerances and superior surface finish achievable with permanent mold tooling.
- Consistent part-to-part repeatability through controlled filling and solidification.
- Seamless integration of CNC machining, heat treating, and NDT backed by ISO 9001:2015 and ITAR certifications.
With over 20 years of foundry experience in Colorado, our “Made in the USA” alternative supports manufacturers reshoring their automotive casting projects. Our “From Prototype to Production” philosophy and multiple casting processes under one roof allow us to scale from design to full production with exacting automotive precision.
Selecting the Right Casting Process for Kentucky Manufacturers
When evaluating low pressure permanent mold casting in Kentucky, manufacturers must assess part complexity, material (especially aluminum), production volume, and mechanical properties. American Foundry Society guidelines help compare processes: LPPM offers superior fill control and reduced porosity for aluminum parts. The choice of low pressure die casting vs gravity casting comes down to application — LPPM’s slower, low-turbulence fill produces denser, higher-integrity components, while gravity casting’s simpler tooling suits lower-volume runs. For precision aluminum automotive casting, LPPM delivers the strength and dimensional accuracy needed for brackets and housings.
We supply low pressure permanent mold casting in Kentucky alongside sand, investment, and die casting under one roof, from our Commerce City, Colorado foundry. Our “From Prototype to Production” model supports Kentucky manufacturers from initial design through full-scale production.
